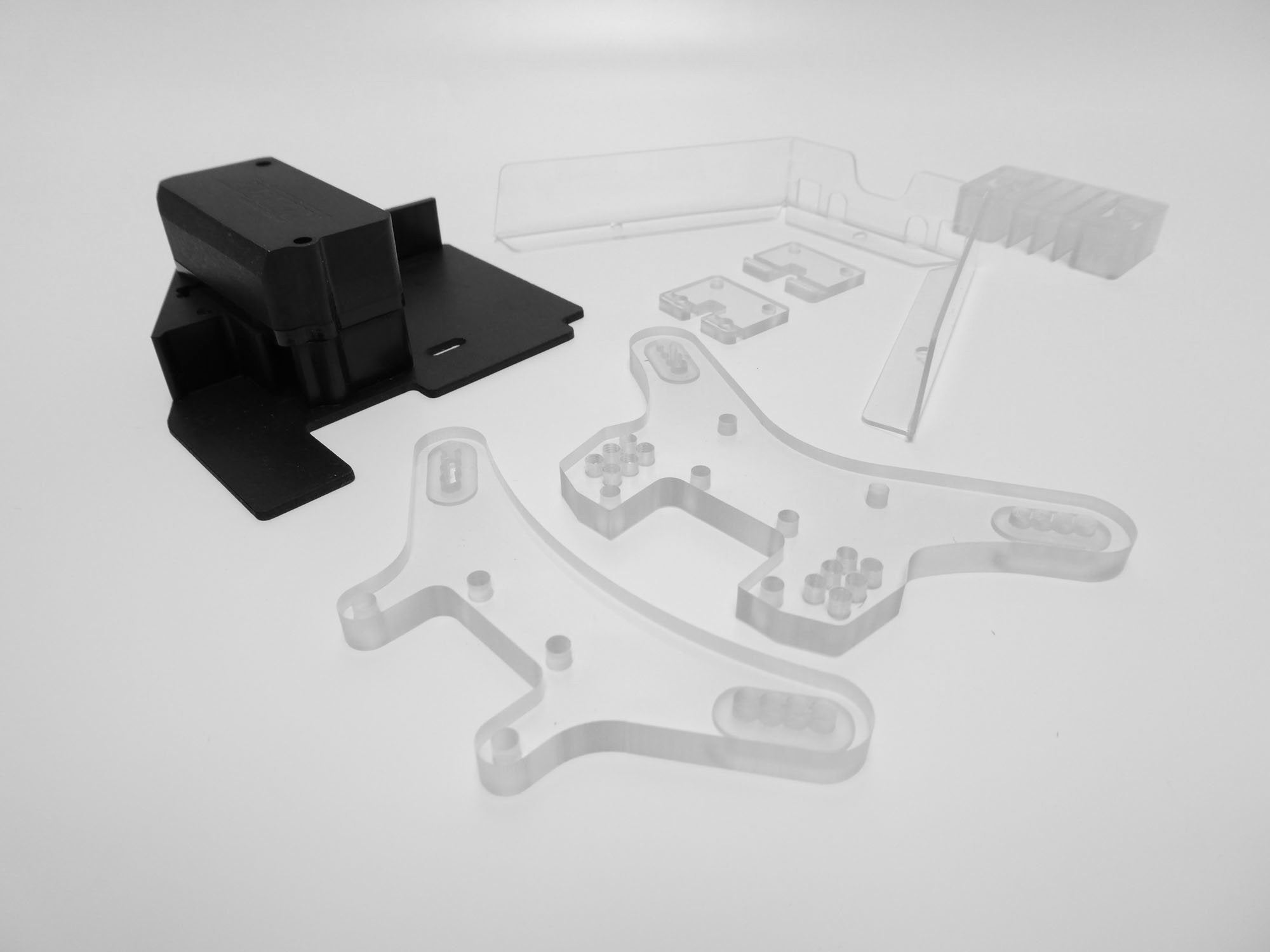

Raceform Full Hop Up Kit for EB410

• Precisely machined from NEW High Impact Modified Polycarbonate
• New material and design is tested for durality
• V2 Front Shock Tower new design is tougher compared to the previous version.
• V2 Rear Shock Tower is suitable for Rear Shock (Front Position) conversion with multiple camber locations
• M3 Threaded Camber Holes - eliminates the use of nut to save weight
• Calculated flex at critical area to save Gear boxes and shock standoffs
• Front @ 10grams, Rear @ 16grams

• Precisely machined from NEW High Impact Modified Polycarbonate
• Simple and elegant way to hold the Sway Bar in the near location
• Designed for All Stock Screws
• Weight 3 grams

RACEFORM REAR SIDE SKIRT FOR EB410

• Japanese Origami inspired, precisely CNC machined
• Increase Velcro area and prevents dirt from entering the chassis
• Reduces the chances of a damaged spur
• Designed to work with or without Stock braces
• Designed to work with screw-on weight including Exotek
• Does not compromise chassis flexing
• Weight 7 grams

RACEFORM EB410 Electronic Tray

• CNC machined electronic tray and laser etched Raceform Logo
• Clean look to your EB410
• No modification needed to your buggy
• PT transponder at the far most possible front
• Tray has enough area to hold Transponder, Receiver, Speed Controller and capacitor
• Only 4 screws in total including motor mount to remove full electronics section.
• 25 grams with cover and screws
• Transponder area size 31mm x17mm
• Receiver area size 24mm x 37mm x 28mm height (Internal Dimensions)
• Speed Controlller and capacitor area size is 41mm x 53mm
• Come in Standard Raceform Logo on top side of cover

RACEFORM EB410 High Wing Mount with Under Wing Diffuser

• Precisely CNC machined from High Impact Clear Polycarbonate (Lexan)
• Under-side fin diffuser creates downforce
• Larger surface area improves wing life
• Reduce or eliminate wing side rubbing the tires during full compression
• Weight - 8grams
• Matching Stainless Steel screws included

The diffuser aerodynamic purpose is to increase the airspeed of the air flow underneath the wing. The air pressure under the wing is then affected by the diffuser, and thus return to normal ambient pressure in the diffuser as the air moves thru. Because the air pressure below the wing is lower, the diffuser will create downforce.

 Advantages

1. Rise up the wing mounting area to ensure enough tire clearance for most aftermarket wings (definitely a must have if you want to use other brands of wings)
2. Increase down force thru Under Wing Diffuser design
